Rigel Series 12inch Osram LED Light Bar 1Lux @ 337m 8,320 Lumens

If you've ever faced an unfamiliar trail in darkness, you know the frustration of poor lighting. That's why the Lightfox Rigel Series 12″ LED light bar is essential. With Vision Drive Tech, Oslon® LEDs, and 13° spot/ 90° flood beam, it enhances visibility, allowing you to spot obstacles, terrain changes with ease. Now, onto our Rigel Series LED light bar. It features Osram’s® Oslon® LEDs, providing focused beams and light guides for better visibility. With a powerful output of 8,320 lumens, 1 Lux at 337 meters, and a color temperature of 5,500K, it’s designed for long-range visibility while being easy on the eyes. Plus, it's tough with AkzoNobel powder coating to withstand UV exposure and corrosion. Installation's a breeze, and it looks sleek on your 4x4’s bull bar, roof rack or UTV’s front bumper. The vibrant die-cast aluminum color caps add a nice touch, injecting a sporty edge into your 4x4. We've also improved the breather system to prevent condensation buildup inside.

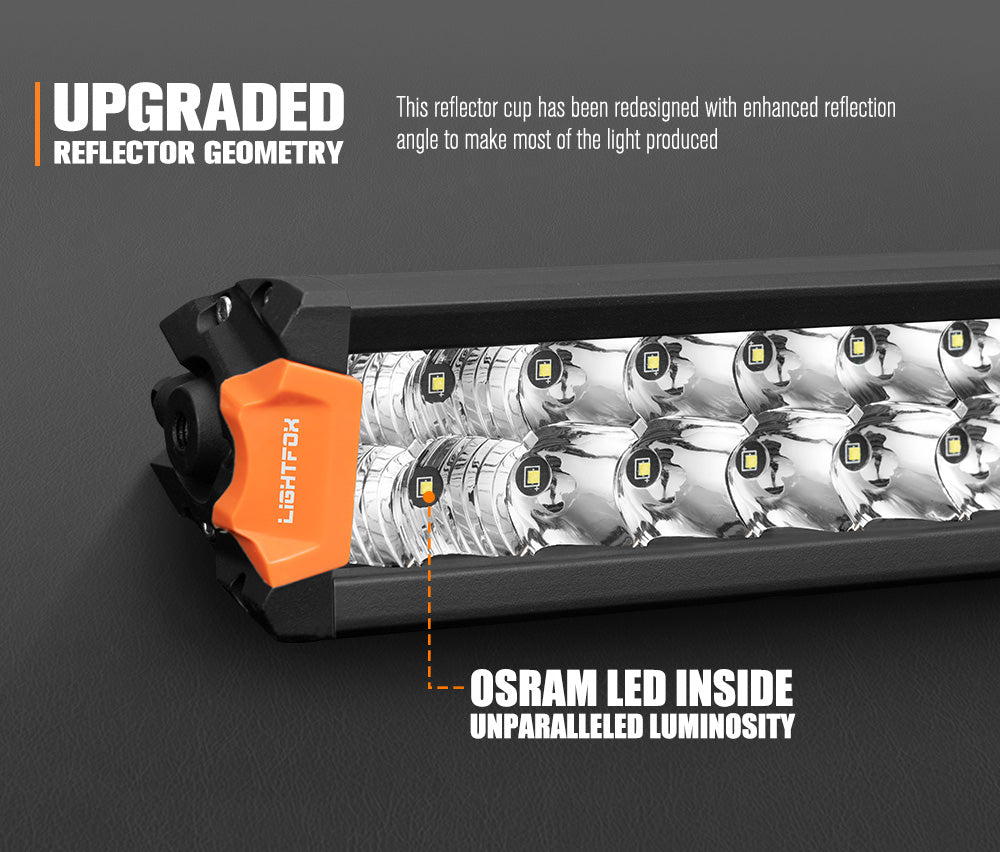

  • Vision Drive Tech: Our Vision Drive Tech utilizes advanced curved and metalized reflectors to capture more light and deliver smooth, clean beams.
  • Ultra Vision: Lightfox combines 13° spot beam and 90° flood beam in a dual row configuration for maximum visibility in all conditions.
  • OSLON® Powered: Our 12″ light bar features OSRAM’s® finest OSLON® LEDs, producing 8,320LM and 1Lux@337m with focused beams for ultimate brightness.
  • Warm Light: Our Rigel Series 12 inch light bar features 5,500K CCT, providing you with a warm, inviting light that will keep you safe and comfortable on the road.

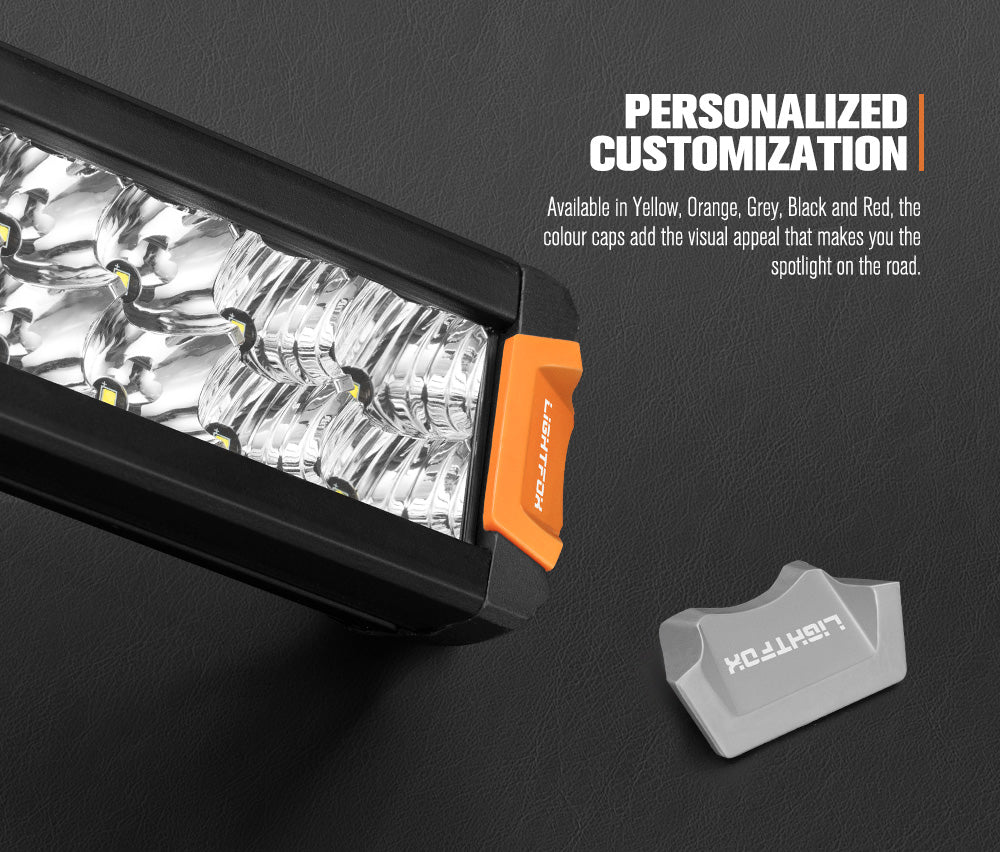

  • Vibrant Color Caps: Add a sporty, adventurous edge to your 4x4 with our die-cast aluminum caps, available in vibrant yellow, orange, grey, black, and red.
  • Circuit Safe: Our 12-inch Rigel Series LED light bar features built-in protection against flashing and reverse polarity, ensuring consistent and smooth operation.
  • Condensation Free: The upgraded breather system manages pressure changes to prevent condensation buildup, maintaining a stable internal environment.
  • Complete Protection: With IP68 protection and screwless design with UV resin, our off road light bar is completely protected against dust and heavy washdown.
  • Tough & Durable: AkzoNobel powder coating offers UV & corrosion protection for aluminum housing. Anti-scratch PC lens and robust brackets enhance durability.
  • Efficient Cooling: With integrated heat sinks, the Rigel Series LED light bar ensures optimal heat transfer, extending its lifespan to up to 50,000 hours.
Bulb Type:LED
Theoretical Output:72W
Housing & Heat Sinks:Aluminum
Lens:Strengthened PC
Coating:AkzoNobel Powder
Sealing Material:UV Resin
Side Bracket:Forged Iron
Bottom Bracket:Aluminum
Raw Lumens:8,320LM

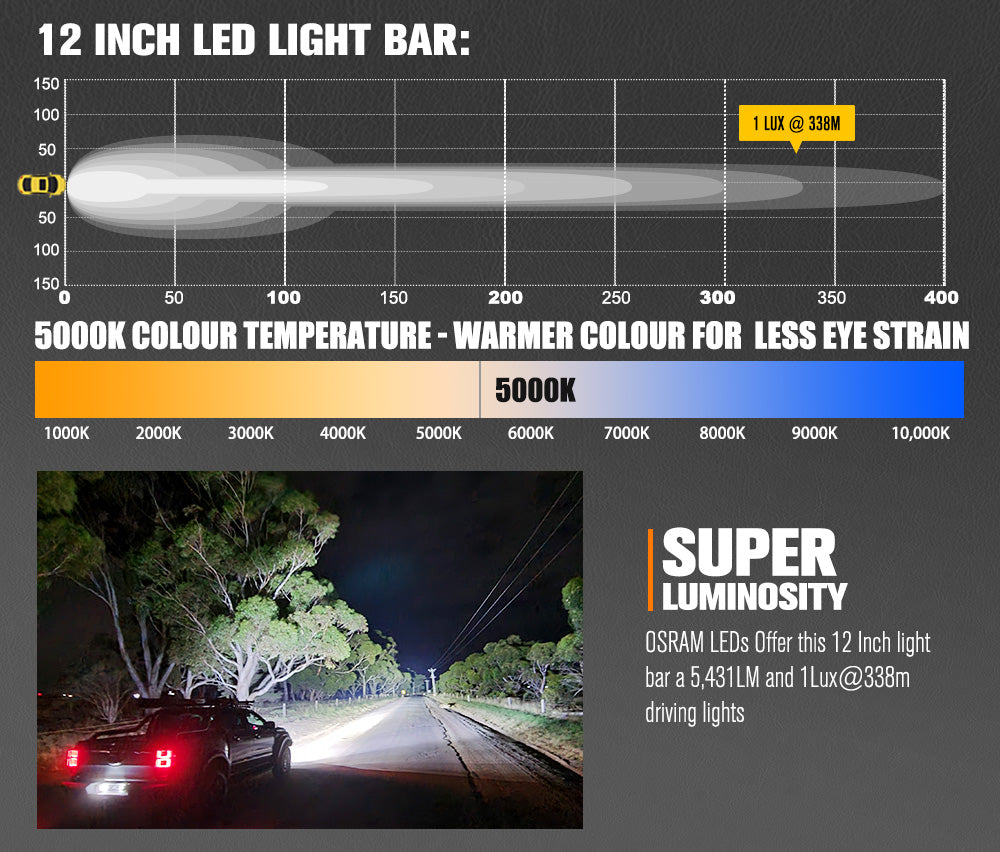

Lux Rating:1Lux@337m
Color Temperature:5,500K
Reflector Distribution:4 Flood + 16 Spot + 4 Flood
Spot Beam:13°
Flood Beam:90°
Amp Draw:3.7A@12V
Expected Lifespan:50,000 Hours
Relative Light Intensity:78% (150°C)
Operating Temperature Range:-40°C (-40°F) ~ 150°C (302°F)
Waterproof:IP-68 Rating

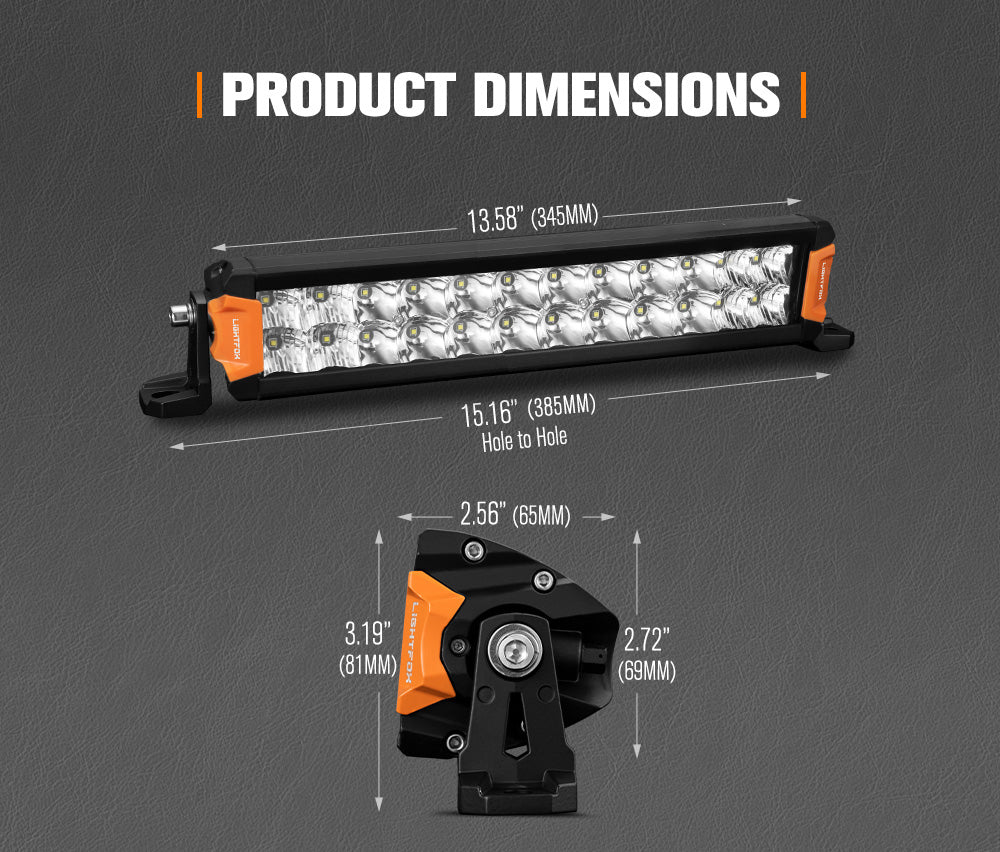

Product Dimension (With Bracket):L37.8 x W6.5 x H8.2 cm
Package Size:37 x 10 x 9.5cm
Gross Weight:1.36kg

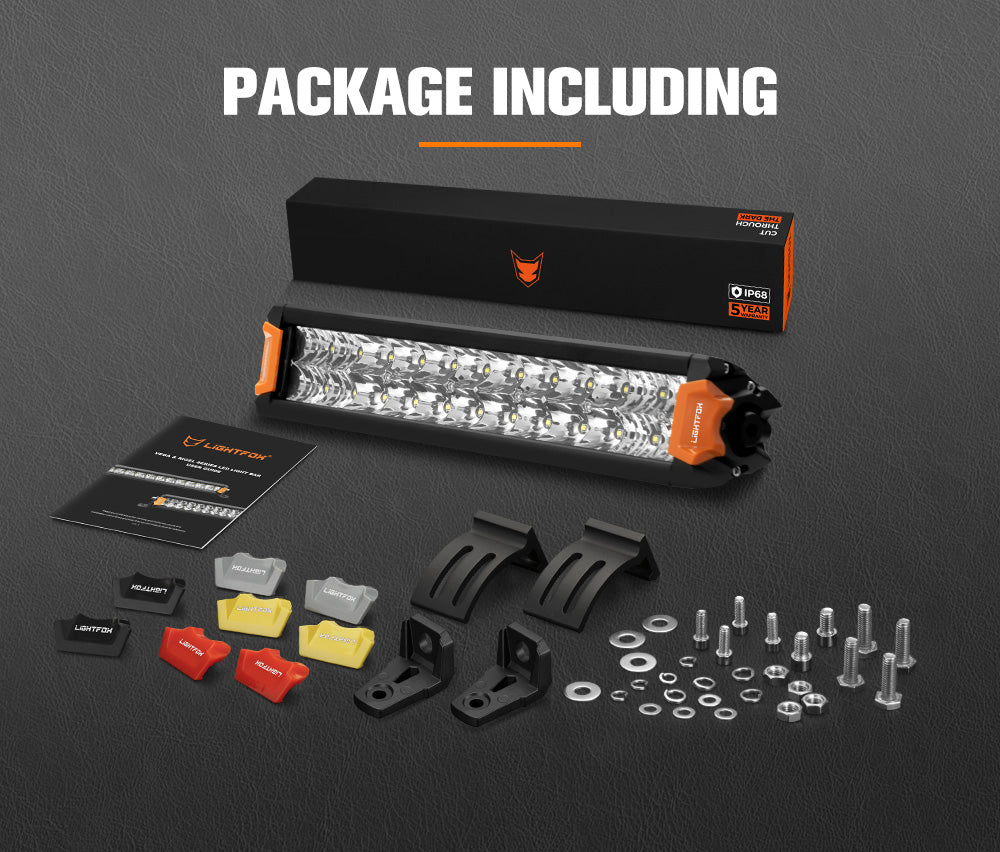

  • 1 x Lightfox 12" LED Light Bar
  • 2 x Side Brackets
  • 2 x Bottom Brackets
  • 1 Set Of Mounting Hardware
  • 4 Pairs Of Colour Caps
  • 1 x User Manual
5 Years Warranty
